BR

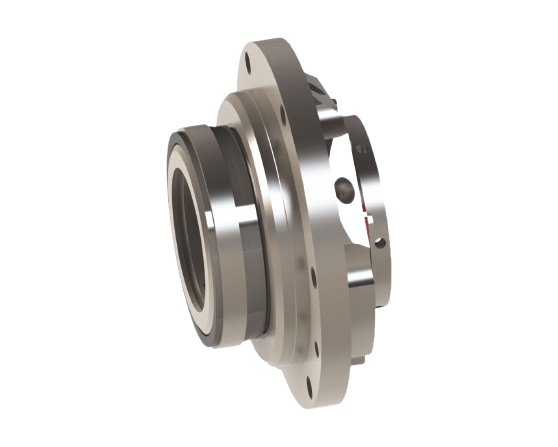

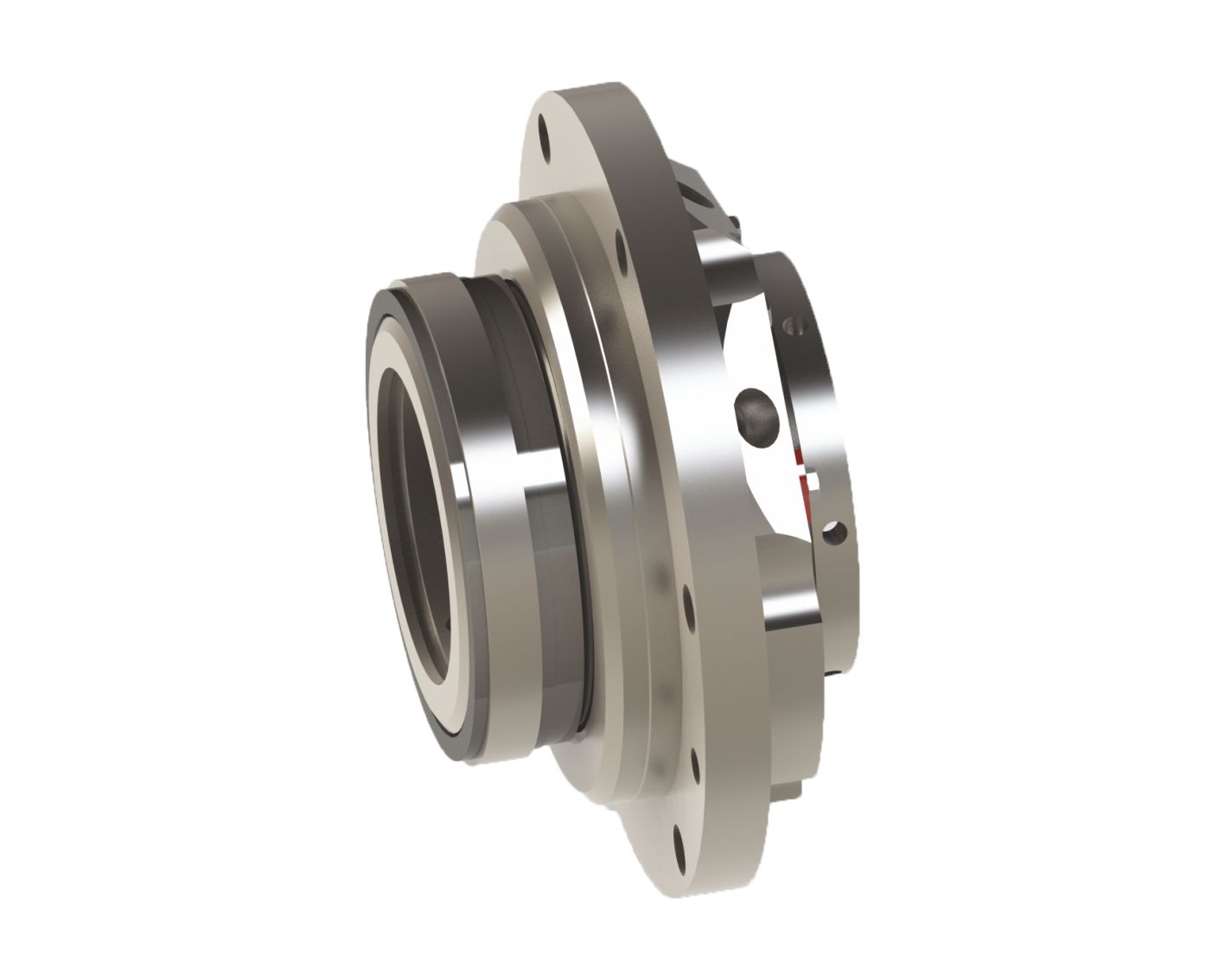

Product Description
- Single and Dual seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Stationary design with multiple springs
- Seat arrangement is designed behind the impeller
- Seat design is rotary
- Specially designed sleeve to protect the springs from contamination
- Variable designs available with guide sleeve for applications with or without quench

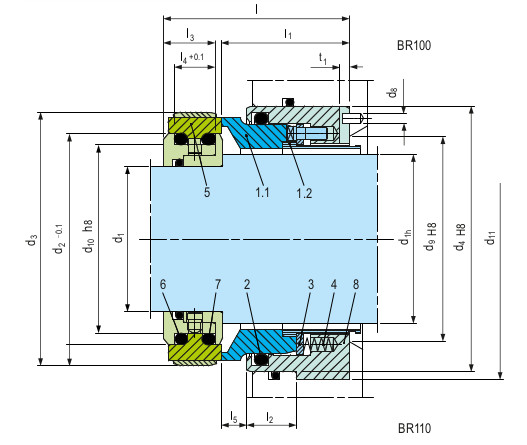

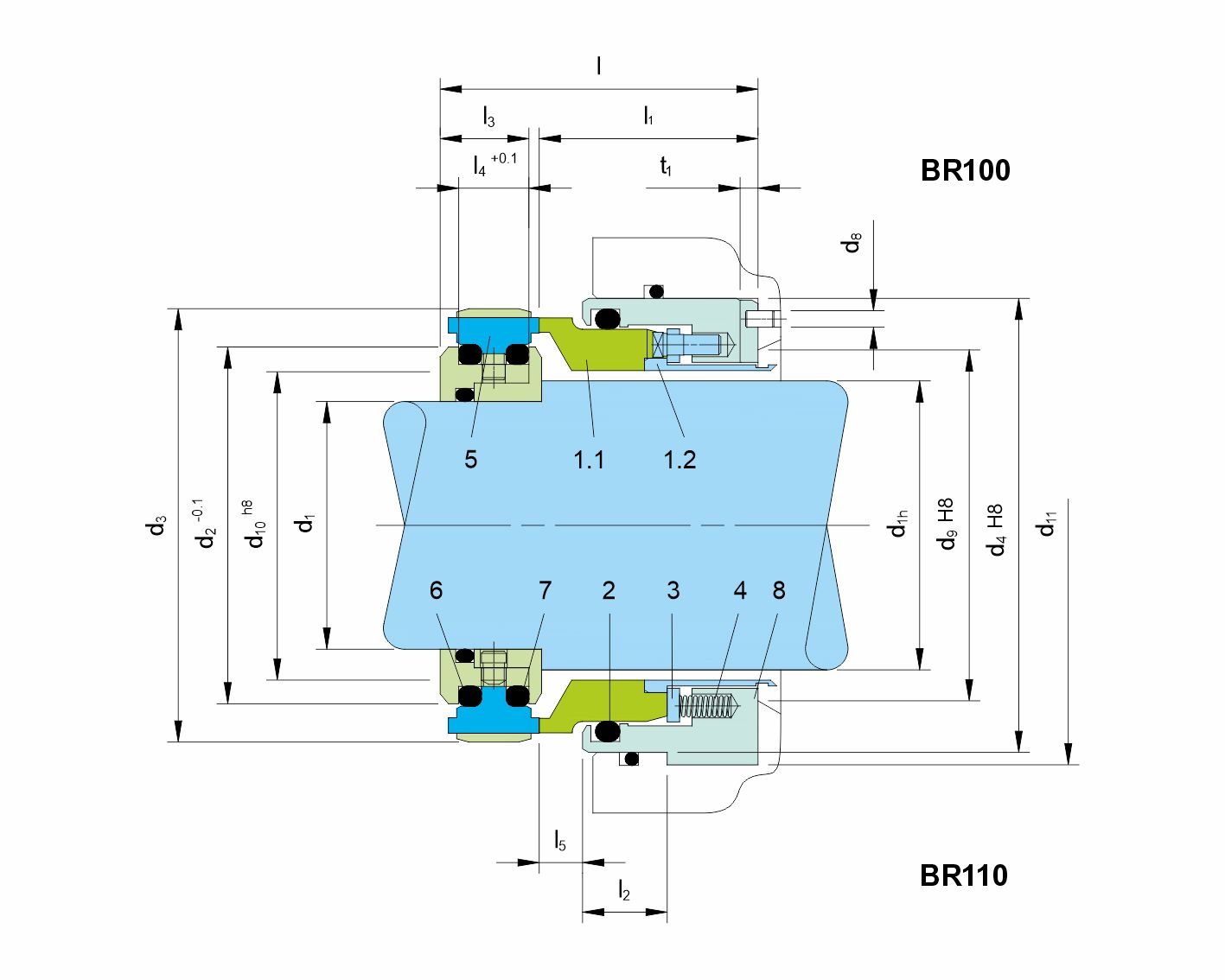

| Details | |
|---|---|
| Item No. | Description |
| 1.1 | Seal face |
| 1.2 | Sleeve |
| 2 | O-Ring |
| 3 | Thrust Ring |
| 4 | Spring |
| 5 | Seat (G11) |
| 6 | O-Ring |
| 7 | O-Ring |
| 8 | Housing |
